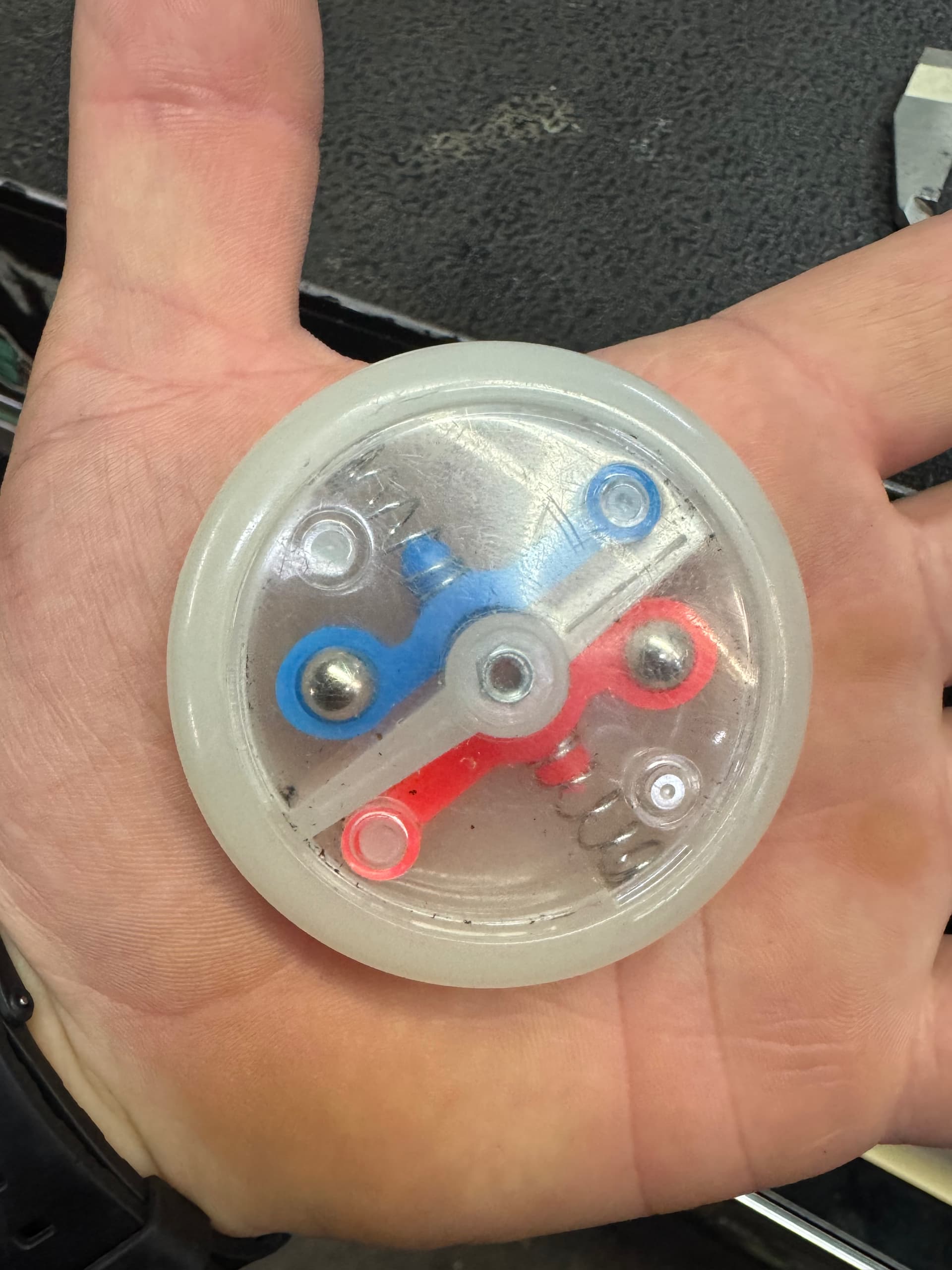

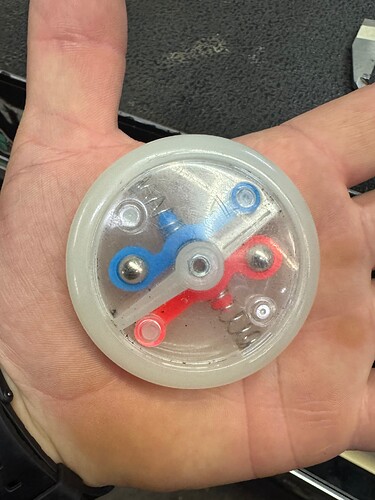

Just got a cool Glow in the Dark Brain, but it’s missing the spool… anyone have a spare? I don’t mind what condition the o ring is in, I can find some at work no problem.
Also still looking for Raider spacers, haven’t had any luck.
I have a model for Raider spacers that I can print for you. The goal was to be closer to the plastic spacers that you would get for modding, but they will not significantly affect the response of your raider if you don’t have a shorter axle as well.
Well, I was able to “make” a spacer, so I have a temporarily permanent fix, but was hoping for a 3D print or actual old stock metal spacers.
I do mostly loop with them, but sometimes attempt some of the very basic 0a that I know.
I have a pair of Saber Raiders, one is missing one spacer. I also have 2 fireballs and the aforementioned spool-less Brain.
Once I locate a spool I was planning to reach out to you with some measurements to get them into the 3D printing world to help make replacements more widely available. If you already have the shim specs, I’d be okay waiting till the spool is located to make it one “order” if that’s okay
I’m pretty sure I have a handful of extra EX spacers I’d be happy to pass along if that’s any help.

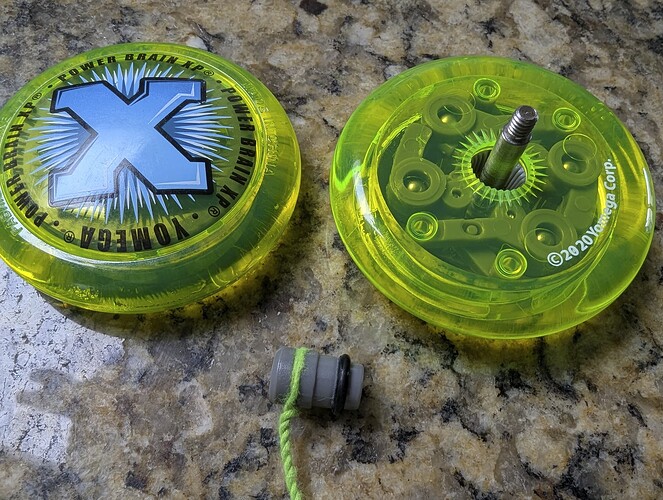

My youngest also came home from school a few months back with a broken Power Brain XP that I repaired. I can get the calipers out and try model a 3D printable version of the spool, but I think it might be a different shape than the regular brain.
I’ll see if I can determine if it’s the same. I think it may be the same tho as the only parts listings I have come across just list “brain spool” with no options in application

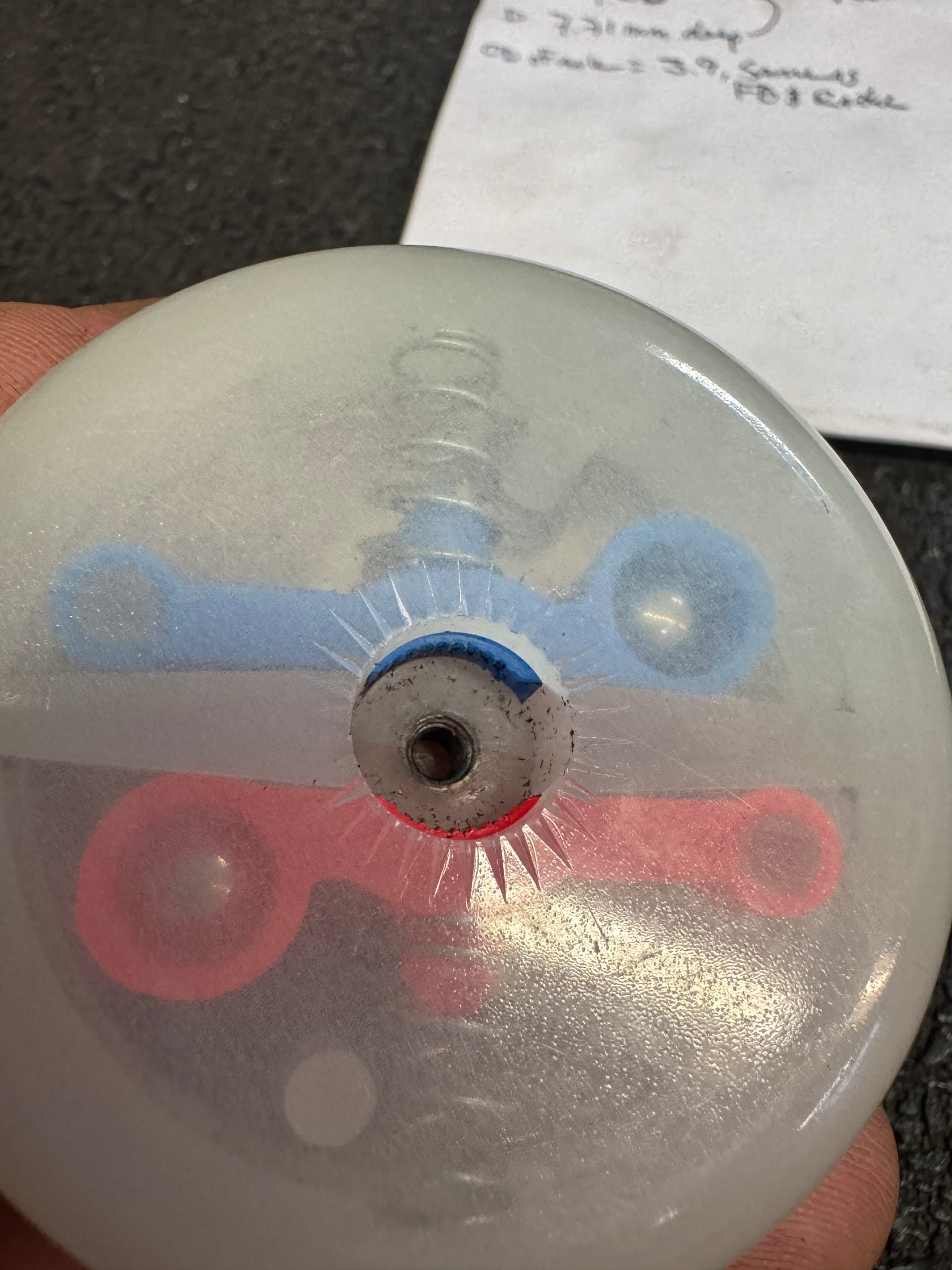

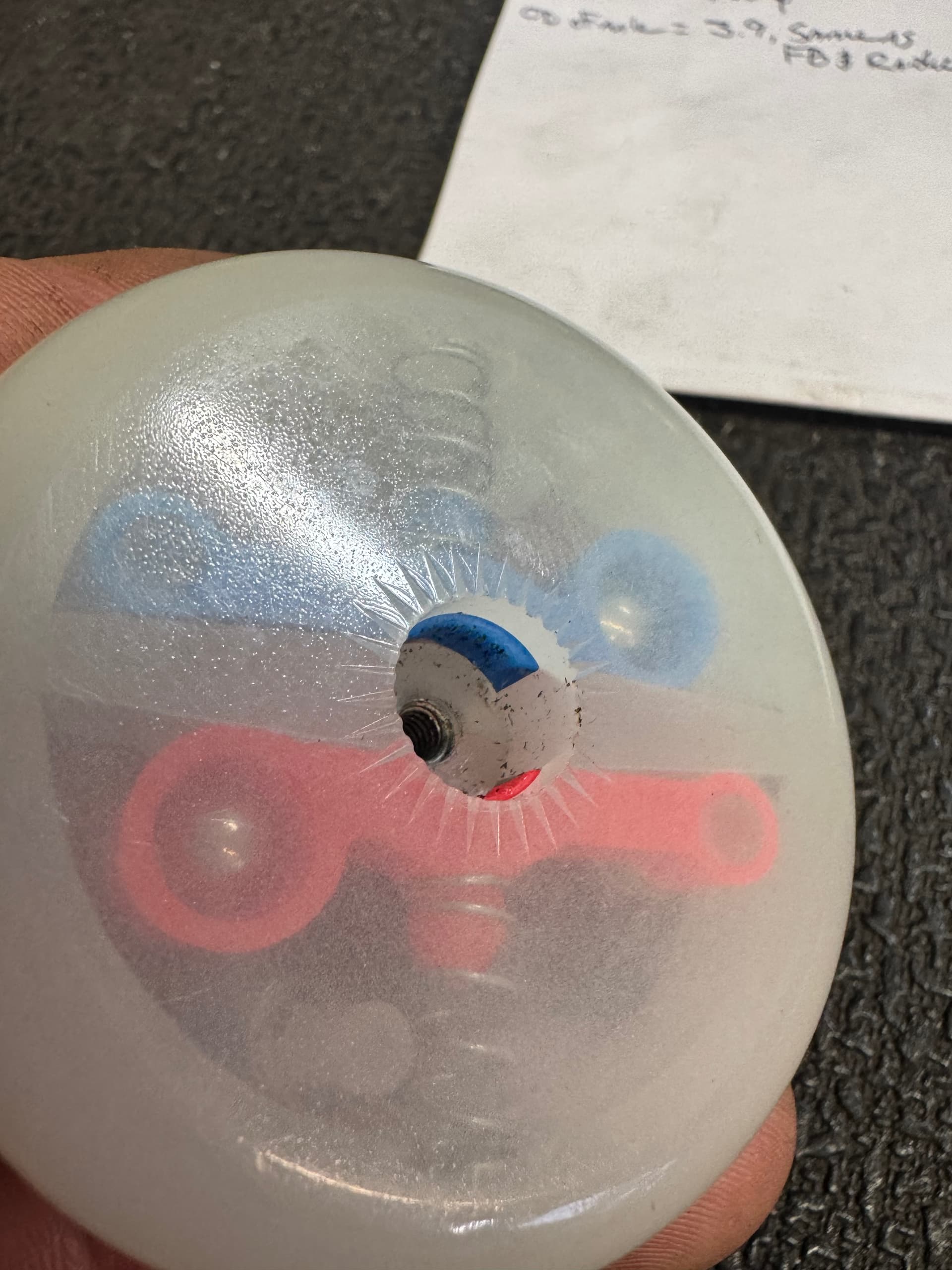

Okay, of course my calipers needed a battery and I don’t have manual ones, but I was able to squeeze these measurements out
Axle: 3.9mm, standard Yomega axle.
Actually I’m using the axle in a fireball halfswapped with the non clutched brain half with brain axle and raider guts currently and it’s perfect, very swapable which is fun.
Anyways,
Width between clutches: 9.35-9.60mm, measuring between clutch teeth, and just barely touching the tops of the teeth.
Clutch side well depth: 7.71mm

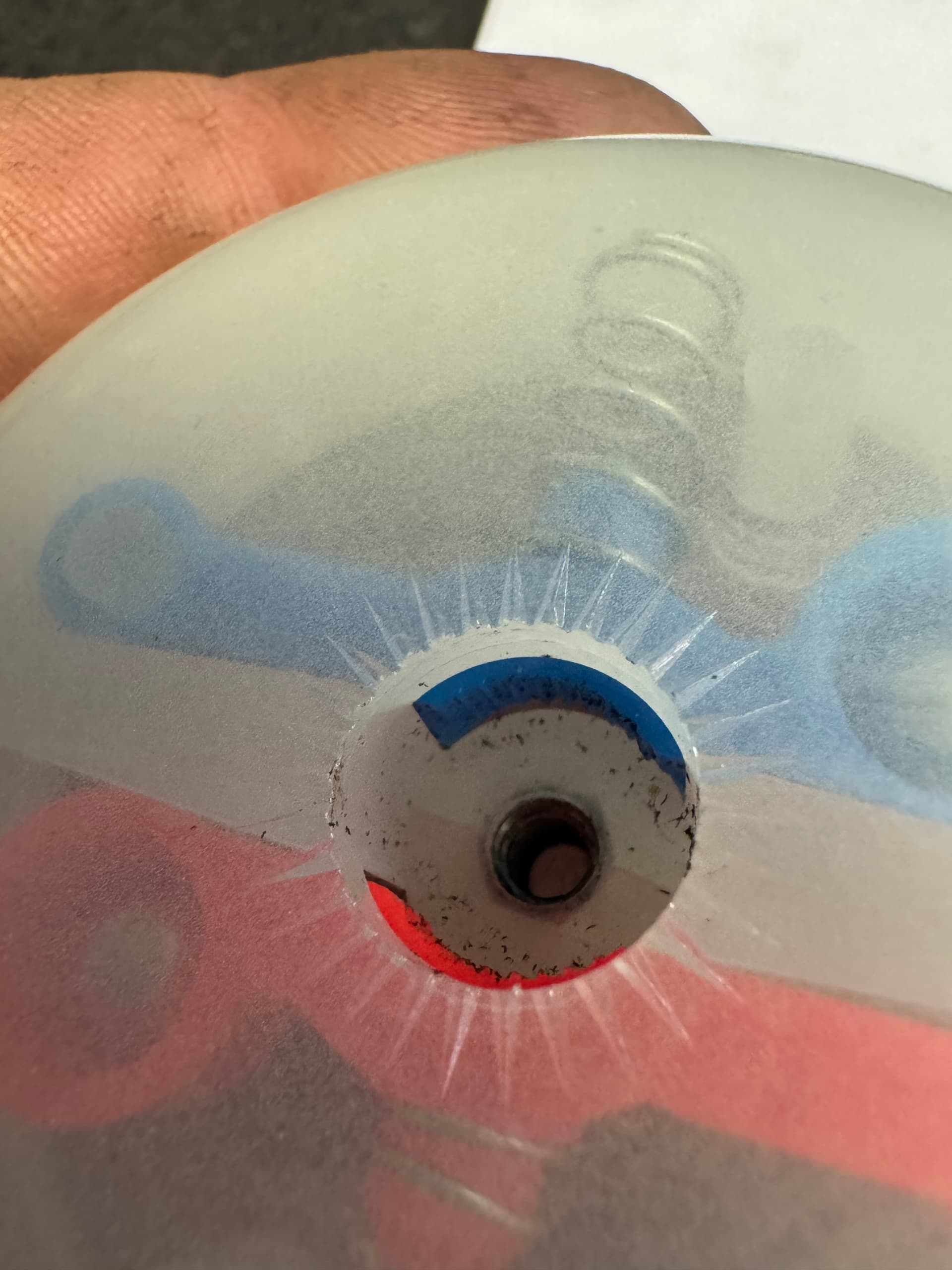

Spool well ID (between clutches) 10.10mm at bottom, 10.50mm at top, at the starburst. Not sure why it’s tapered slightly, but it is
How deep is the hole in the other cap? The dimensions you gave on the clutch side were pretty close to my X-Brain, so I’m thinking the bigger difference might be on the other end opposite the clutch.

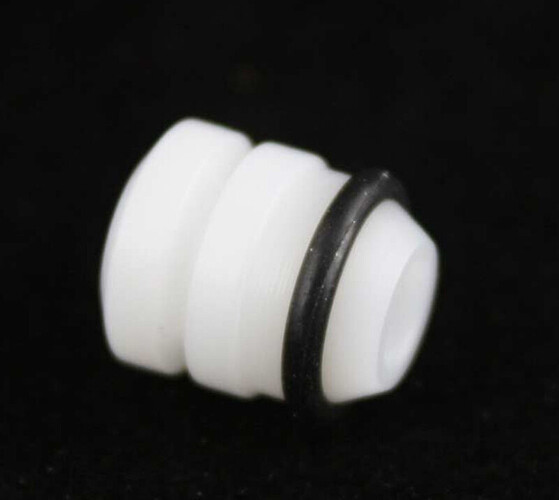

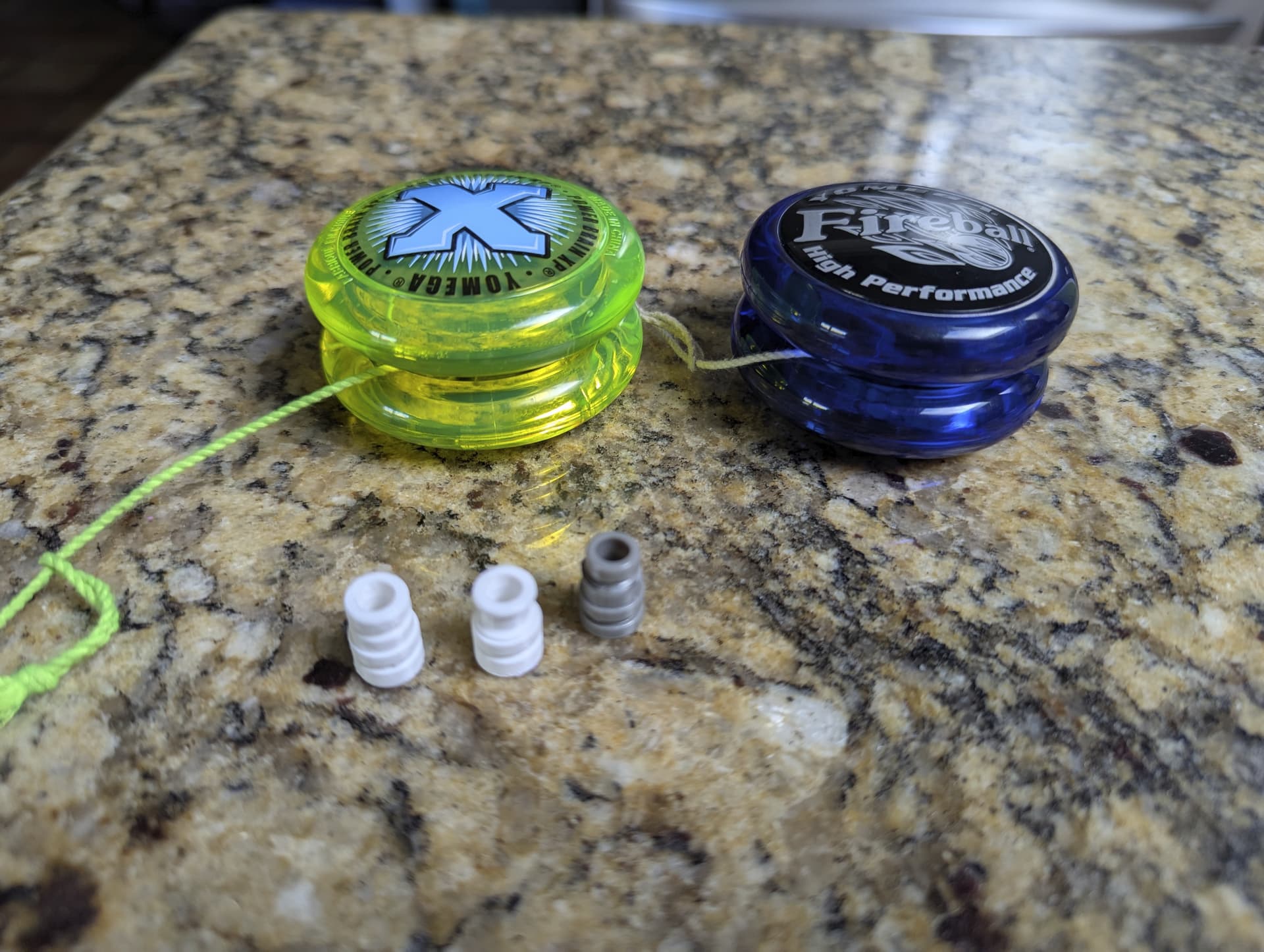

I did model and print a couple versions (single and triple o-ring), and they work in my X-Brain, but I’m thinking the overall length may be too long for yours.
